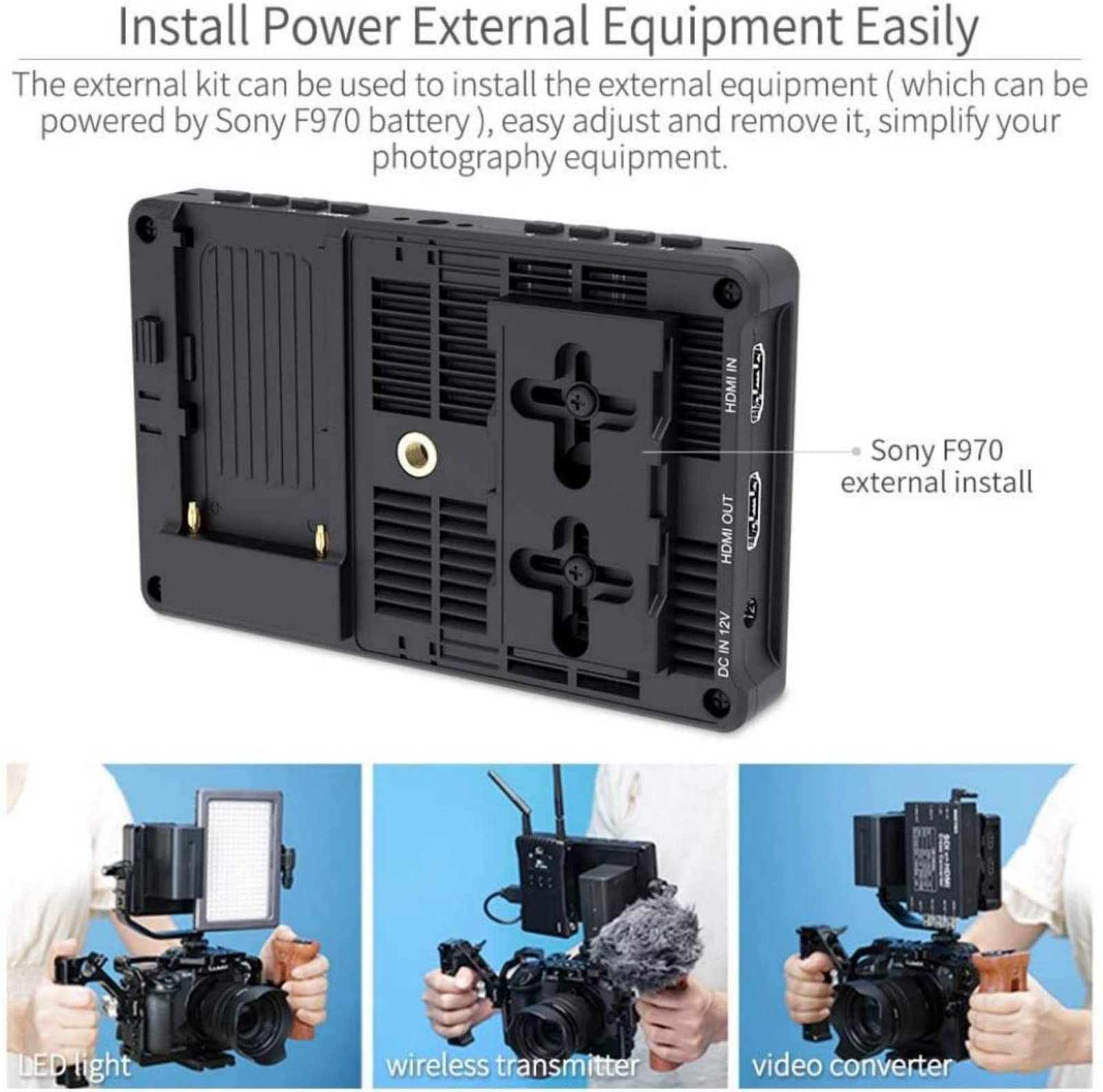

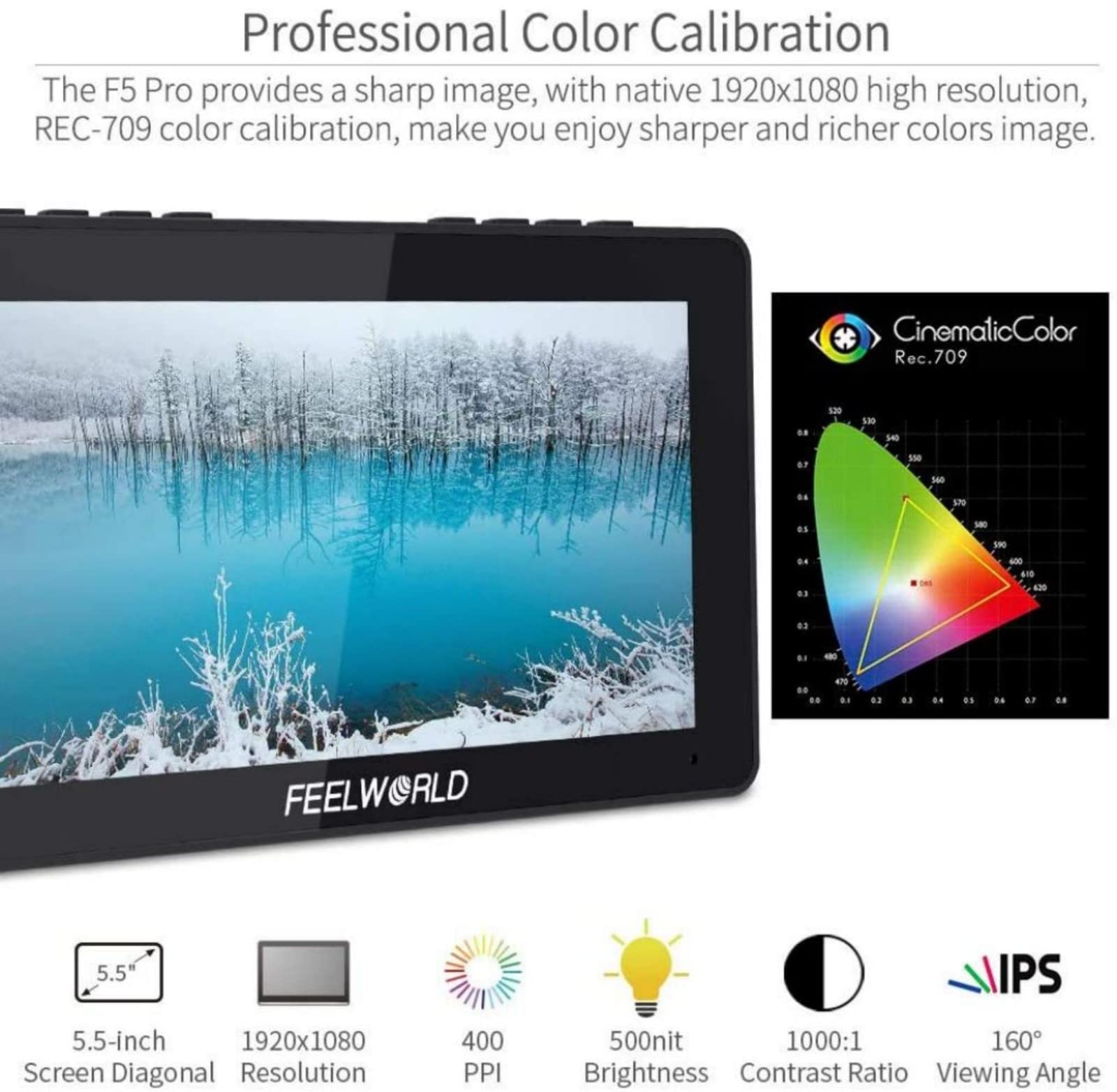

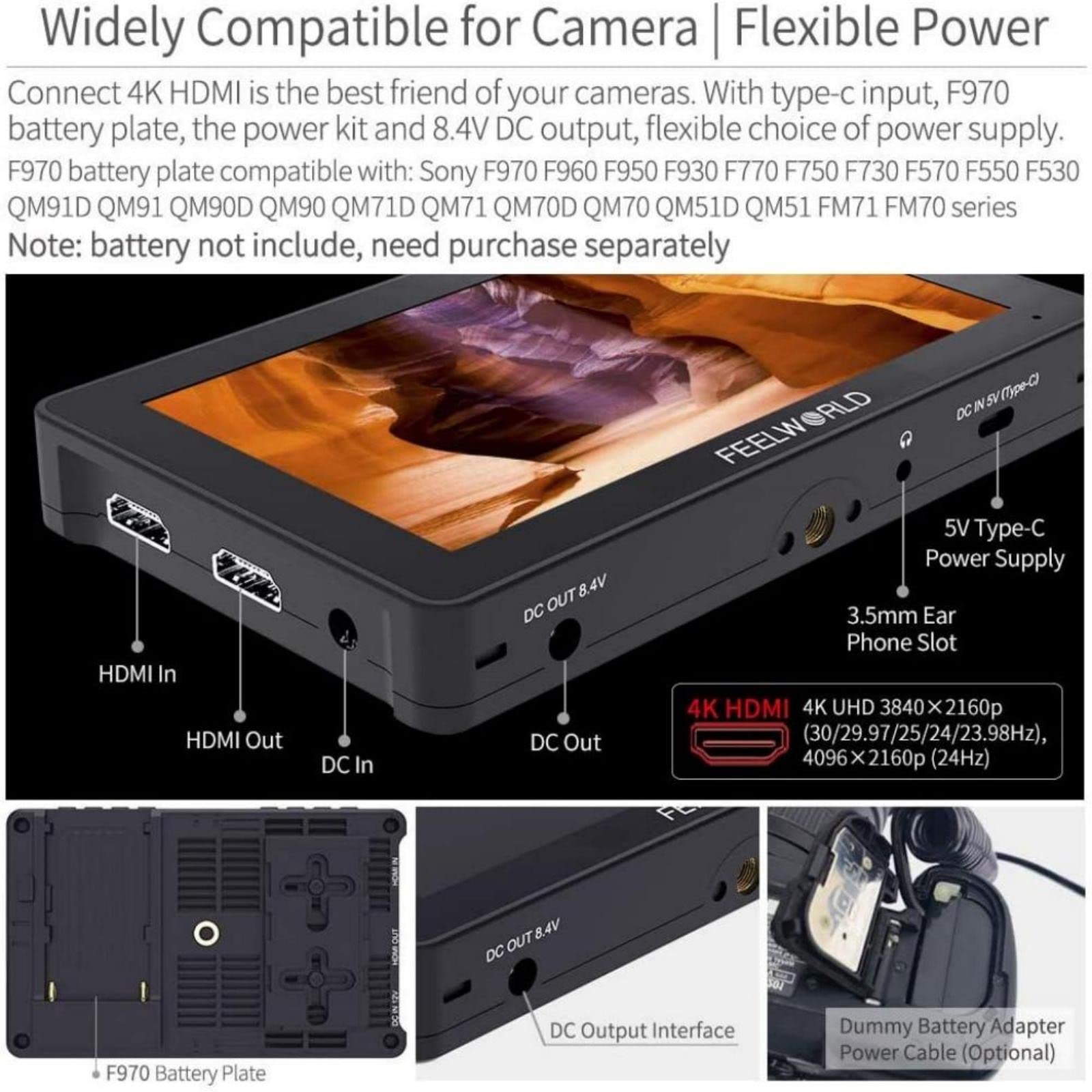

FEELWORLD F5 PRO V4 6 Inch Touch Screen 3D LUT DSLR Camera Field Monitor with F970 External Power Kit 4K HDMI Input Output FEELWORLD F5 Pro V4 is sure to add instant production value for mirrorless and DSLR shooters. Its bright touch screen, professional software tools, and convenient mounting is invaluable for shooters looking to do more with less gear. The monitor includes a plethora of useful features such as histogram, false color, focus assist, embedded audio, pixel to pixel, frame guides, nine grid etc Advance Feature: High Resolution: Full HD 1920x1080, High Contrast: 1000:1, High Brightness: 500cd/m², 160° wide viewing angles IPS Panel This innovative external power supply design reduces the need for photographers to connect to external wireless transmission, LED light and other equipment Provides auxiliary power out; allowing shooters to power their camerasHistogramPeaking Focus Assist (Red,Green,Blue three colors optional highlight over parts of the image in focus)False Colors , Zebra Exposure Nine Grid Scan Mode (Under Scan, Over Scan), Zoom (4x,9x,16x), Anamorphic Mode (1.3x, 2.0x, 2.0x mag, User-defined adjustment: 1.20X~2.00X), Pixel to Pixel Center Marker, Safe Area (80%,85%,90%,93%,96%,2.35:1), Ratio marker (4:3,13:9,14:9,15:9,16:9,1.85:1,2.35:1), Marker Color (Red,Green,Blue,White,Black）Check Field (Red/Green/Blue/Mono)Image Flip (H, V, H/V), Image Freeze Zoom All (0~100 adjustable) ,U/D & L/R Zoom (0~100 adjustable)Color Temperature Adjustment Main Feature Innovative External Install and Power Design Simplify your photography equipment A Sony F970 external install and power kit design is added to the back of the monitor. The external kit can be used to install and install the external equipment, like wireless transmission, LED light, video converter and others that can be powered by a Sony F970 battery. Load Custom 3D LUTs to Recreate Film Looks! Some cameras can output logarithmic colors pace to preserve the dynamic range, which is great for later post production, however when these files are viewed on a monitor they can look flat and washed out. F5 Pro V4 allows you to load internally up to custom LUTs (Up to 32 user files can be imported), looks or profiles at any time via the TYPE-C interface to USB . Slot and instantly select between them, maintaining creative intent, always. Easy Touchscreen Controls, Freely Zoom In and Out Adopt full touch screen control, you can easily and intuitively zoom in and Out of your shot with the pinch-to-zoom gesture. All Control At Your Fingertips The built-in monitor is also an interactive touchscreen that makes setting up the F5 Pro V4 incredibly intuitive. All of the functions are at your fingertips, allowing you to use simple tap and swipe gestures to change function settings. When you need to turn off the touch screen function to prevent misuse, you can turn it off in the menu setting function. Designed for Every Situation We shaved F5 Pro V4 down to just 245g and added 1/4-20 screw mounts top, bottom and right for ease of cage, adaptor rigging, and tilt arm. There are an F970 battery plate and an install/ power kit on the back of the monitor, the install/ power kit can power and install the external equipment, like wireless transmitter, LED light and others which equipped with Sony F970 battery plate. Portable Sunshade, Easy Install The F5 Pro V4 monitor is equipped with a sunshade, which allows the photographer to focus more on the video and avoid the interference of strong light, providing a better visual experience. The installation process is simple and fast, which is very suitable for outdoor shooting. Trouble Shooting 1. Can't turn on the monitor Make sure to use the standard 12V 1.5A power adapter to connect the monitor. If power is supplied by battery, please check if the battery is fully charged. 2.Have noise during recording Long press “ " is increase the volume. 3.The monitor display " no signal" 1）Try another HDMI cable. 2）And please try to connect monitor HDMI to your computer, try if the monitor have signal? 3）Change the camera output singal, confirm the monitor input signal whether support the camera output signal. 4.When you turn on the focus peak, the information on the monitor will also display the focus peak and other problems. You can try to turn off the "HDMI Information Display" under the "HDMI Settings" tab in the menu system, so that when the focus is turned on, it will not A similar situation occurred. True Color. Professional Color Calibration Use Rec.709 color standard FEELWORLD uses the professional Rec.709 HD color standard, and uses the color calibration technology, with the professional instrument calibration at the factory, it can achieve monitor calibration efficiently and get accurate color reproduction easily, do not distort the color, show the real image when you shooting video. 4K HDMI Input & Loop Output The F5 Pro V2 has 4K HDMI in and loop-out, allowing it to not only display live signals, but also send them out to other monitors simultaneously. It's the ability to display live picture on multiple displays at once while still maintaining the original video quality. Plus, you can monitor audio using the 3.5mm stereo headphone jack. Multiple Power Supply Ways In addition to the power supply through the F970 battery plate and 12V DC power input, it also supports 5V Type-C input, which can be powered by mobile phone charger or power bank. (At least 5V/2A) Note: The 5V Type-C port is only used for power supply, not for data transmission, and cannot provide loop-out power. Battery adapter cable(Need to purchase seaprately) he FEELWORLD F5 Pro V2 is an ideal camera-top monitor for DSLR and mirrorless camera shooters. Because the F5 Pro provides auxiliary power out; allowing shooters to power their cameras. With a battery adapter cable (Optional), the F5 Pro extends camera run-time, while providing a more usable display. SPECIFICATIONS Display Spec. Model F5 Pro V4Screen size: 6" IPS Touch ScreenResolution: 1920x1080 pixelsPixel Pitch: 0.0639 (H) x 0.0213 (W) mmAspect Ratio: 16:9Brightness: 500cd/m²Contrast Ratio: 1000:1Backlight: LEDViewing Angle: 80°/80°(L/R) 80°/80°(U/D) HDMI Input/ Output Support Format Input: 1 X HDMI, 1 X Type-COutput: 1 X HDMI, 1 X DC OutputAudio: Stereo HeadphoneHDMI Input/ Output Support Format480i/576i/480p/576p1080i (60/59.94/50)720p (60/59.94/50/30/29.97/25/24/23.98)1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/ 23.98sF)4K UHD 3840×2160p (30/29.97/25/24/23.98Hz), 4096×2160p (24Hz) General Input Voltage: DC7～24VPower Consumption: ≤9WPower Connector: DCWorking Temperature: -20°C~50°CStorage Temperature: -30°C~60°CInstall Way: ¼-20 thread pointsUnit Size: 148Lx93Hx20D (mm)Unit Weight: 245g Package Including with Extra Accessories 1× Feelworld F5 Pro V4 Monitor 1× Micro HDMI Cable 1× Sunshade; 1× Tilt Arm 1× Disassemble Wrench; 1x User manual 1x Carry Case 1× Mini HDMI Cable 1x NP970 Battery 1x Battery Charger FEELWORLD F6 PLUS FEELWORLD LUT5 FEELWORLD F7 PRO FEELWORLD LUT6 FEELWORLD LUT7 FEELWORLD LUT7 PRO Add to Cart Add to Cart Buying Options Add to Cart Buying Options Buying Options Customer Reviews 4.2 out of 5 stars 158 3.4 out of 5 stars 3 4.5 out of 5 stars 15 4.0 out of 5 stars 19 3.9 out of 5 stars 20 4.7 out of 5 stars 9 Price $199.99$199.99 $289.99$289.99 — no data $289.99$289.99 — no data — no data Screen Size 5.5" Touch Screen 5.5" Touch Screen 7" Touch Screen 6" Touch Screen 7" Touch Screen 7" Touch Screen Resolution 1920x1200 pixels 1920*1080 pixels 1920x1200 pixels 1920*1080 pixels 1920*1200 pixels 1920x1200 pixels Aspect Ratio 16:9 16:9 16:10 16:9 16:10 16:10 Brightness 500cd/m2 3000cd/m² 500cd/m² 2600cd/m² 2200cd/m² (Light Sensor) 2200cd/m² (Light Sensor) Contrast 1000:1 1000:1 1200:1 1000:1 1200:1 1200:1 Inputs 4K HDMI, SD Slot, Type-C HDMI HDMI 4K HDMI, SD Card 4K HDMI, SD Card HDMI Outputs 4K HDMI, Stereo Headphone, DC OUT 8V, Barrel (5.5mm outer, 2.1mm inner; Power DSLR or mirrorless camera) HDMI, DC OUT 8V, Stereo Headphone HDMI, DC OUT 8V, Stereo Headphone HDMI, DC OUT 8.4V, Stereo Headphone 4K HDMI, DC OUT 8.4V, Stereo Headphone HDMI, DC OUT 8V, Stereo Headphone Features 3D LUT, HDR, Waveform, VectorScope, Histogram, Peaking Focus Assist, False Colors, Zebra Exposure, Scan Mode, Zoom, Anamorphic Mode, Pixel to Pixel, Nine Grid, Center Marker, Safety Marker, Ratio Marker, Check Field, Image Flip 3D LUT, HDR, Waveform, Vector Scope, RGB Histogram, Peaking Focus Assist, False Colors, Zebra Exposure, Scan Mode, Zoom, Anamorphic Mode, Pixel to Pixel, Nine Grid, Center Marker, Safety Marker, Ratio Marker, Check Field, Image Flip 3D LUT, HDR, Waveform, Vectorscope, Histogram, Peaking Focus Assist, False Color, Exposure, Check Field, Zoom, Anamorphic Mode, Image Flip, Nine Grid, Pixel to Pixel, Center Marker, Safety Marker, Ratio Marker 3D LUT, HDR, Waveform, Vector Scope, RGB Histogram, Peaking Focus Assist, False Colors, Zebra Exposure, Scan Mode, Zoom, Anamorphic Mode, Pixel to Pixel, Nine Grid, Center Marker, Safety Marker, Ratio Marker, Check Field, Image Flip 3D LUT, Waveform, Vector Scope, RGB Histogram, Peaking Focus Assist, False Colors, Zebra Exposure, Scan Mode, Zoom, Anamorphic Mode, Pixel to Pixel, Nine Grid, Center Marker, Safety Marker, Ratio Marker, Check Field, Image Flip 3D LUT, HDR, Waveform, Vectorscope, Histogram, Peaking Focus Assist, False Color, Exposure, Check Field, Zoom, Anamorphic Mode, Image Flip, Nine Grid, Pixel to Pixel, Center Marker, Safety Marker, Ratio Marker Unit Size 148Lx93Hx20D (mm) 142Lx86Hx28D(mm) 175Lx105Hx22D(mm) 162Lx93.2Hx29D(mm) 190Lx126Hx27D (mm) 190Lx126Hx27D (mm) Unit Weight 235g 270g 330g 300g 460g 450g
